In the realm of advanced manufacturing and custom fabrication, the final surface finish is often the difference between a functional prototype and a market-ready, mission-critical component. At LAVA3DP, we specialize in bridging the gap between digital design and physical reality. While our core expertise lies in additive manufacturing, we recognize that true engineering excellence often requires post-processing techniques that enhance both form and function.
Among the most sought-after surface finishing solutions are Gold Plating and Silver Plating. These aren’t merely aesthetic choices; they are sophisticated electroplating processes that imbue components with superior electrical conductivity, corrosion resistance, and thermal management capabilities.
This article provides a deep dive into the science, benefits, and applications of gold and silver plating, specifically tailored for engineers, product designers, and procurement specialists looking to leverage custom parts fabrication for high-performance industries.
1.The Fundamental Difference: Gold vs. Silver Plating
To select the correct plating method, one must understand the atomic properties of these noble metals. Both belong to the transition metals group, yet they serve distinct engineering purposes.
| Property | Gold Plating (Au) | Silver Plating (Ag) |
|---|---|---|
| Electrical Resistivity | 2.44 µΩ·cm | 1.59 µΩ·cm |
| Corrosion Resistance | Excellent (Inert) | Moderate (Tarnishes in sulfur environments) |
| Hardness (Deposited) | 20–250 HK (depending on additives) | 60–120 HK |
| Thermal Conductivity | 318 W/(m·K) | 429 W/(m·K) |
| Cost | Very High | Moderate |
| Primary Use Case | RF shielding, aerospace connectors, medical implants | High-power bus bars, RF components, decorative |
Source: ASTM B488 (Standard Specification for Electrodeposited Coatings of Gold) & ASTM B700 (Standard Specification for Electrodeposited Coatings of Silver) .

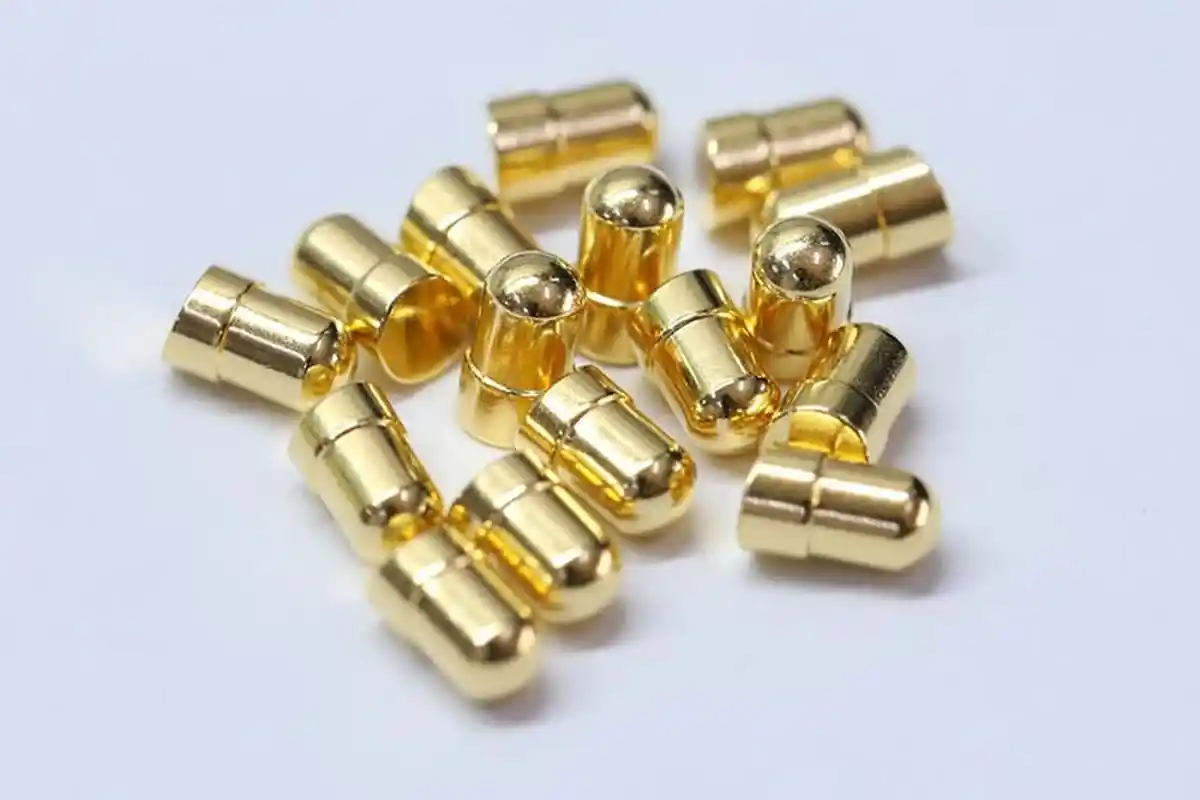

2. Advantages of Gold Plating in Custom Manufacturing
Gold is universally recognized for its noble metal status—it does not oxidize or react with oxygen under standard atmospheric conditions. For custom parts fabricated by LAVA3DP, gold plating offers three distinct engineering advantages:
Superior Corrosion Resistance
In harsh environments, such as marine applications or chemical processing, base metals like copper or aluminum are prone to galvanic corrosion. A gold layer acts as a barrier layer, preventing the underlying substrate from reacting with environmental agents. Studies indicate that gold plating extends the lifespan of copper-based electrical contacts by up to 10x compared to unplated variants in high-humidity environments .
Low Contact Resistance
In the electronics industry, gold remains the “gold standard” for connector pins, switches, and relay contacts. Because gold does not form an oxide film, it maintains consistent, low contact resistance over billions of cycles. This is critical for aerospace and defense applications where signal integrity cannot be compromised .
Biocompatibility
Gold is non-toxic and highly biocompatible. In the medical sector, gold-plated components are used in implantable devices and surgical tools. The FDA recognizes gold as a Class II material for permanent implants when processed correctly, due to its resistance to bodily fluids .
3. Advantages of Silver Plating
While gold often steals the spotlight, silver is the unsung hero of high-power applications. Its primary advantage is thermal and electrical efficiency.
Highest Electrical Conductivity
Silver has the highest electrical conductivity of any element. For components that require the transmission of high currents without overheating—such as bus bars in electric vehicle (EV) batteries—silver plating offers a 5-10% performance increase over copper alone.
Lubricity and Anti-Galling
Silver plating exhibits excellent lubricity. When components are under high torque or vibration (such as threaded fasteners in automotive engines), silver prevents galling (adhesive wear) without requiring traditional lubricants that degrade over time.
Cost-Effectiveness
For large-scale custom fabrication runs, silver plating offers a significant cost reduction compared to gold while delivering 90% of the performance in terms of conductivity, provided environmental sealing is managed.
4.Critical Materials for Plating Substrates
At LAVA3DP, we offer custom parts in a variety of base materials that are ideal for gold and silver plating. The adhesion of the plating depends heavily on the substrate preparation.
Copper and Copper Alloys
The most common substrates for electroplating. Copper’s natural affinity for noble metals allows for strong adhesion. However, copper oxidizes rapidly; therefore, parts must be plated immediately after cleaning to prevent oxide layer formation.
Aluminum and Aluminum Alloys (e.g., 6061, 7075)
Aluminum requires a zincate immersion pre-treatment before plating. This process replaces the native aluminum oxide with a thin layer of zinc, allowing the gold or silver to adhere properly. Without this, plating on aluminum will peel due to the oxide layer’s insulating properties.
Stainless Steel
While corrosion-resistant, stainless steel is often plated with gold or silver to improve conductivity or to facilitate soldering. Passivation removal is critical before plating to ensure adhesion.
3D Printed Metals (Inconel, Ti64)
As a leader in additive manufacturing, we frequently plate Inconel (nickel-chromium superalloy) and Titanium Ti6Al4V.
- Inconel: Used in rocket engines and jet turbines. Silver plating acts as a high-temperature anti-seize compound.
- Titanium: Used in medical implants. Gold plating provides biocompatibility and radiopacity (visibility on X-rays).
5.Visual Data: Applications by Industry
To illustrate the market distribution of these plating services, the following chart estimates the demand distribution for gold vs. silver plating across various sectors based on industry reports from 2023-2024.
| Industry Sector | Gold Plating Demand (%) | Silver Plating Demand (%) | Key Application |
|---|---|---|---|
| Aerospace & Defense | 45% | 20% | Avionics connectors, waveguide components |
| Medical Technology | 30% | 5% | Implants, surgical robotics, sensors |
| Electronics & Semiconductors | 20% | 30% | PCB edge connectors, MEMS switches |
| Automotive & EV | 5% | 40% | Bus bars, battery terminals, high-voltage contacts |
| Telecommunications | 0% | 5% | RF antennas, 5G infrastructure |
Data aggregated from: Precedence Research (2024), MarketsandMarkets (Electroplating Market Report), and Grand View Research (2023).
6.The Electroplating Process: From CAD to Finished Part
For customers utilizing LAVA3DP’s custom parts fabrication service, understanding the workflow ensures proper design tolerances are maintained.
- Design & Fabrication: The part is produced via CNC machining or 3D printing (SLA, SLS, or DMLS).
- Surface Preparation: This is the most critical step. The part undergoes ultrasonic cleaning, degreasing, and acid etching to remove contaminants. For 3D printed parts, we ensure surface roughness (Ra) is optimized to between 0.8 and 1.6 µm to allow the plating to bond without creating stress risers.
- Strike Layer: A thin “strike” layer of nickel or copper is often applied first. This acts as a diffusion barrier, preventing the base metal (e.g., copper) from migrating into the gold layer, which would cause embrittlement over time.
- Plating Bath: The part is submerged in a chemical bath. For gold, we use hard gold (alloyed with cobalt or nickel) for wear resistance in connectors, or soft gold (pure 24k) for wire bonding and soldering. For silver, we utilize cyanide-based or non-cyanide baths depending on the substrate complexity.
- Quality Assurance: Post-plating, we conduct adhesion tests (tape test), thickness measurement (X-ray fluorescence), and salt spray testing for corrosion validation per ISO 9227.
7.Frequent Asked Questions(FAQs)
1. What is the maximum part size LAVA3DP can handle for gold or silver plating?
At LAVA3DP, our plating facility can accommodate custom parts up to 600mm x 600mm x 600mm in size. We utilize specialized tank configurations for both rack plating (for delicate, high-precision components) and barrel plating (for bulk fasteners and small parts). If your project requires larger dimensions, please contact us to discuss custom fixture solutions to ensure uniform coating thickness across complex geometries.
2. How do I choose between hard gold and soft gold plating for my connectors?
The choice depends entirely on the mechanical function of the part. Hard gold (alloyed with cobalt or nickel) is recommended for components subject to repeated mating cycles, such as PCB edge connectors or switch contacts, due to its superior wear resistance. Soft gold (99.9% pure) is ideal for wire bonding, soldering, and applications requiring extreme ductility. Our engineering team at LAVA3DP analyzes your use case to recommend the optimal ASTM B488 classification for your project.
3. Will silver plating tarnish over time, and how can I prevent it?
Yes, pure silver is susceptible to tarnishing (sulfurization) when exposed to ambient air, which can increase contact resistance. To mitigate this, LAVA3DP offers post-plating passivation treatments. Alternatively, if the application is in a sealed environment (such as inside a RF enclosure or EV battery pack) or requires maximum conductivity, silver remains the superior choice. For open-air consumer products, we often recommend gold plating or an anti-tarnish topcoat to preserve aesthetics and performance.
4. Can LAVA3DP plate directly onto 3D printed metal parts?
Absolutely. As a specialist in additive manufacturing, LAVA3DP has developed proprietary pre-treatment processes for DMLS (Direct Metal Laser Sintering) parts. We account for the inherent surface roughness of as-printed components to ensure the plating layer adheres without blistering. We commonly plate Inconel 718 and Ti6Al4V substrates with gold for aerospace and medical applications, ensuring the final part meets strict mil-spec (MIL-DTL-45204) requirements.
5. What is the typical turnaround time for plating custom parts?
Turnaround time is dependent on the batch size and substrate complexity. For standard CNC machined or 3D printed parts using copper or aluminum substrates, our standard lead time is 5 to 7 business days from the receipt of raw parts. Expedited services are available for R&D prototypes and urgent production runs. We encourage clients to upload their CAD files to LAVA3DP to receive a detailed quote that includes a specific delivery estimate for the plating specifications.
