Thin-Wall Injection Molding

The fundamental principle behind thin wall plastic injection molding is identical to that of traditional injection molding: molten thermoplastic material is injected under high pressure into a precision-machined mold cavity, where it cools and solidifies into the desired shape. However, the execution differs dramatically. Because the mold cavity is exceptionally thin, the molten polymer faces much higher flow resistance and must fill the entire cavity before the material begins to freeze at the mold walls. This reflects how thin wall injection molding works in practice and demands substantially higher injection speeds (often exceeding 300 mm/s), higher injection pressures (frequently above 2,000 bar), and exceptionally short cycle times—as brief as 1.8 to 3 seconds per shot in optimized high-volume production lines, enabling short cycle time molding.

Thin-wall injection molding is not merely an incremental improvement; it is a distinct manufacturing capability that requires purpose-built machinery, advanced mold designs, and carefully selected high flow plastic materials. When executed correctly, it unlocks unparalleled production efficiency, material savings, and lightweighting potential that traditional molding simply cannot achieve, making it a preferred solution among any thin wall injection molding manufacturer.

Key Definitions and Industry Standards

The industry recognizes several criteria for classifying a part as “thin-wall”:

• Absolute Wall Thickness: Wall thickness below 1 mm for parts of typical size in low wall thickness molding.
• Flow Length-to-Wall Thickness Ratio: Ratio exceeding 150:1 or 200:1 (e.g., a 300 mm flow length with a 1.5 mm wall yields a ratio of 200:1).
• Packaging and High-Speed Molding: Wall thickness below 0.5 mm with L/t exceeding 200:1, typical in high speed injection molding thin wall applications.
• Ultra-Thin Micro Molding: Wall thickness below 0.3 mm, often used in medical and micro-electronics.

In 2024, the China Materials Testing Standards Alliance (CSTM) released group standard T/CSTM 34567-2024 for thin-wall injection molds, establishing unified technical requirements for design, manufacturing, and validation. This standard mandates wall thickness tolerances of ±0.02 mm for components under 0.5 mm, mandatory conformal cooling channels for cycle time optimization, and steel hardness requirements of HRC 52-56 for high-volume production exceeding 500,000 cycles. Such standards ensure consistent quality and global interoperability for manufacturers and their customers, especially for production-grade plastic parts.

How Thin-Wall Injection Molding Works: Process & Technology

The thin-wall injection molding process follows the same basic sequence as conventional injection molding but with critical modifications at every stage to accommodate the unique challenges of ultra-thin cavities, highlighting injection molding process optimization.

Material Preparation and Melt Conditioning

The process begins with thermoplastic pellets being fed into a heated barrel equipped with a reciprocating screw. The screw rotates, shearing and melting the polymer while advancing it toward the front of the barrel. For thin-wall applications, barrel temperatures are often set higher than those used in standard molding to lower the melt viscosity and improve flowability. The melt must achieve a uniform temperature and homogeneous consistency before injection, ensuring compatibility with thermoplastics for thin wall molding.

High-Speed, High-Pressure Injection

Once sufficient melt has accumulated, the screw moves forward like a plunger, forcing the molten polymer through a nozzle and into the mold’s runner system and gates at extremely high speeds—often 300 mm/s or more. Injection pressures frequently exceed 2,000 bar, compared to typical 500–1,500 bar in conventional molding. This high-speed, high-pressure injection is essential to overcome the flow resistance created by the thin cavity and to fill the entire part before the melt begins to solidify at the cold mold walls. This is a defining feature of high-speed molding technology.

Many thin-wall molding systems incorporate accumulator-assisted injection, where hydraulic accumulators store energy and release it instantaneously to achieve the required injection velocities. High-speed injection is typically followed by a packing (hold) phase, where additional material is forced into the cavity to compensate for shrinkage as the part cools.

Rapid Cooling and Solidification

Because thin walls have less thermal mass, they cool and solidify much faster than thicker sections. Cooling typically accounts for the majority of the injection molding cycle, so this accelerated cooling translates directly into shorter cycle times and higher throughput. In high-speed packaging applications, total cycle times—from injection through cooling to mold opening and part ejection—can be as short as 1.8 to 3 seconds. Effective cooling is achieved through conformal cooling channels built into the mold, which follow the contour of the part to remove heat uniformly and minimize warpage, improving achieving uniform wall thickness.

Mold Opening, Ejection, and Automation

After the part has cooled sufficiently, the mold opens, and ejector pins push the solidified part out of the cavity. In fully automated production lines, robotic arms or pick-and-place systems remove the parts, perform secondary operations such as in-mold labeling or stacking, and prepare the mold for the next cycle. Thin-wall molding is highly compatible with automation, enabling lights-out manufacturing for high-volume production and supporting high cavitation molds.

Key Advantages of High-Speed Thin-Wall Injection Molding

Thin-wall injection molding delivers a compelling combination of economic, environmental, and performance benefits that make it the process of choice for countless high-volume applications, reinforcing the benefits of thin wall molding.

Material Cost Reduction

The most direct and immediate advantage of thin-wall molding is the substantial reduction in material consumption. By using less plastic per part, manufacturers significantly lower their raw material costs. For companies producing millions of parts annually, these savings accumulate rapidly and directly impact the bottom line. In packaging applications, resin consumption can be cut by up to 20 percent without compromising durability or functionality. Lower material usage also reduces the weight of finished products, which translates into lower shipping costs and improved logistics efficiency, especially for lightweight plastic components.

Faster Cycle Times and Higher Throughput

Thinner walls cool faster, allowing molds to open and reset more quickly. Thin-wall injection molding machines are engineered to maintain injection speeds exceeding 300 mm/s, reducing each cycle by several seconds compared to conventional molding. In continuous production lines, these savings compound dramatically. Compared to traditional injection molding systems, thin-wall injection molding machines can shorten cycle times by more than 30 percent, significantly boosting output for large-scale manufacturers and enabling fast cycle injection molding. Faster cycle times mean more parts per hour, lower per-part production costs, and the ability to meet tight delivery schedules without expanding production capacity.

Lightweight Product Design

Thin-wall molding produces structurally sound yet exceptionally lightweight components. For industries such as automotive, aerospace, and portable electronics, every gram matters. Reducing component weight while maintaining strength improves fuel efficiency in vehicles, extends battery life in portable devices, and enhances user comfort in handheld and wearable products. The automotive sector, for example, has shifted part thickness standards from 3.5–4.0 mm down to 2.5 mm or even 2.0 mm in many applications, contributing to automotive lightweight plastic parts.

Energy Efficiency and Sustainability

Thin-wall molding consumes less energy per part for several reasons. First, the reduced material volume means less polymer must be melted, lowering the energy required for plasticizing. Second, shorter cycle times reduce the energy consumed by machine hydraulics, heating systems, and cooling units over a given production period. Third, modern thin-wall injection molding machines utilize servo-driven hydraulics or full-electric injection units, which offer superior energy efficiency while maintaining rapid response. The combination of reduced material usage, lower energy consumption, and faster throughput results in a significantly lower carbon footprint per part, supporting corporate sustainability goals and meeting growing regulatory demands for environmentally responsible manufacturing.

Precision and Dimensional Accuracy

Contrary to what intuition might suggest, reducing wall thickness does not necessarily reduce dimensional precision—in fact, the high pressures, rigid tooling, and controlled cooling inherent to thin-wall molding often yield parts with tighter tolerances and better repeatability than conventional molding. The rigid mechanical structure and advanced servo systems of thin-wall molding machines maintain tight tolerances essential for parts that require uniform wall thickness and precise fit, such as food containers or snap-fit lids, reinforcing precision thin wall molding.

Best Materials for Thin-Wall Injection Molding Applications

Selecting the right material is arguably the most critical decision in thin-wall injection molding. The ideal resin must balance high melt flowability for rapid cavity filling, good dimensional stability to resist warpage, and adequate mechanical strength despite the reduced cross-section, aligning with materials for thin wall injection molding.

Key Material Properties

Successful thin-wall molding requires resins with the following characteristics:

• High Melt Flow Rate (MFR): Thin walls require molten polymer to fill the cavity quickly before solidification. Resins with MFR values of 20–40 g/10 min (at standard test conditions) facilitate rapid, uniform filling without excessive injection pressure.
• Low Viscosity: Reduced viscosity under shear ensures the polymer flows through narrow gates and thin ribs. A moderate shear-sensitivity index maintains flow under high shear rates, preventing premature freeze-off.
• Controlled Shrinkage and Warpage: Minimal differential shrinkage between core and skin layers reduces internal stresses and warp. Target linear shrinkage below 0.5 percent helps maintain tight tolerances in electronic housings or medical fixtures.
• High Heat Deflection Temperature (HDT): Thin-wall parts experience rapid thermal conduction and can be prone to distortion under operating conditions. Resins with HDT above 80°C ensure parts resist creep and deformation in hot environments or during sterilization cycles.



Recommended Material Grades

The table below summarizes the most commonly used thermoplastics for thin-wall injection molding, along with their key properties and typical applications.

Material	MFR (g/10 min)	Recommended Min. Wall Thickness	Key Properties	Typical Applications
Polypropylene (PP)	10–100	0.50–0.75 mm	Excellent flowability, chemical resistance, low density	Food containers, beverage cups, caps, packaging trays
Nylon/Polyamide (PA6/PA66)	5–50	0.60–1.20 mm	High strength, wear resistance, good flowability	Electronic connectors, automotive gears, medical devices
ABS	1–10	1.14–1.20 mm	Balance of rigidity, toughness, dimensional stability	Appliance housings, automotive interior parts, electronic shells
Polycarbonate (PC)	2–10	1.00–1.02 mm	High impact resistance, transparency, heat resistance	Mobile phone cases, laptop housings, optical components
PC/ABS Blend	Moderate-high	0.80–1.20 mm	Combines PC’s strength with ABS’s flowability; rigid yet tough	3C electronic casings, medical device enclosures
HDPE/LDPE	Very high	0.50–0.76 mm	Exceptional flow, flexibility, chemical resistance	Ultra-thin parts, liners, shopping bags, thin-wall packaging
Polystyrene (PS)/HIPS	5–30	0.80–1.50 mm	Good flowability, transparency, smooth surface finish	Transparent packaging boxes, electronic trays, appliance housings
Glass-Filled PP/ABS/PA	Varies	1.50 mm+	Enhanced stiffness and strength for structural applications	Structural thin-wall parts requiring high load-bearing capacity



Medical-Grade and High-Performance Materials

For medical device applications, materials must meet stringent biocompatibility standards. Medical-grade PP and PE compliant with ISO 13485 certification are commonly used for syringes, IV components, and diagnostic housings. For automotive electronics and high-temperature applications, specialized resins such as PEEK and PSU offer exceptional heat resistance and chemical stability, although molding these materials requires extensive technical expertise.

Industry Applications of Thin-Wall Plastic Injection Molding

Thin-wall injection molding serves a diverse range of industries, each leveraging the process’s unique combination of lightweighting, precision, and high-volume efficiency.

Medical Devices

The medical device industry demands components that are lightweight, precise, sterile, and manufacturable at high volumes. Thin-wall injection molding meets all these requirements. Typical medical applications include syringes, catheters, IV components, surgical instruments, portable diagnostic equipment housings, and lab-on-a-chip diagnostic cartridges. ISO 13485-certified molding ensures biocompatibility and regulatory compliance, while the ability to produce thin, precise components supports the trend toward miniaturized and wearable medical technologies.

Electronics and Consumer Goods

The relentless drive toward thinner, lighter, and more compact electronics has made thin-wall molding indispensable. Smartphone frames, laptop housings, TV bezels, battery housings, and wearable device enclosures all rely on thin-wall molding to achieve sleek profiles without sacrificing structural integrity. The process also supports the production of electronic connectors, cable management components, and precision gear systems where tight tolerances are essential.

Automotive

Automotive manufacturers are under constant pressure to reduce vehicle weight to improve fuel efficiency and meet emissions standards. Thin-wall interior and exterior components—including dashboard panels, door trims, lighting housings, and connector systems—help achieve these goals. The process also enables metal replacement through metal-insert molding, where metal-plastic hybrid parts perform better while weighing less than the all-metal components they replace.

Food and Beverage Packaging

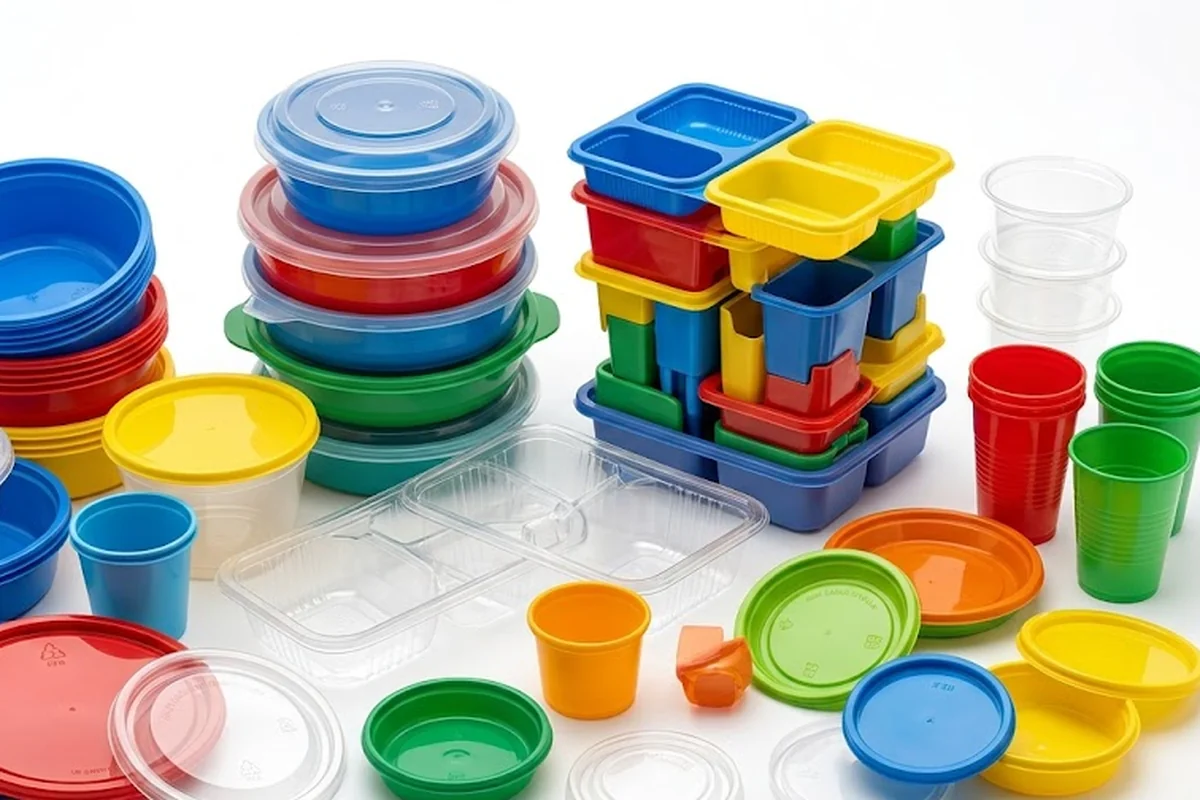

Packaging represents one of the largest-volume applications for thin-wall injection molding. Disposable cups, containers, lids, dairy tubs, and food trays are produced in enormous quantities using high-speed thin-wall molding with cycle times as short as 1.8 seconds. In-mold labeling (IML) is frequently integrated into the process to apply decorative graphics directly during molding, eliminating secondary labeling operations. The use of recycled materials, such as rPET, is increasingly common in sustainable packaging applications.

Summary of Industry Applications

Industry	Typical Parts	Key Requirements
Medical Devices	Syringes, catheters, IV components, diagnostic housings	Biocompatibility, precision, high-volume sterility
Electronics	Smartphone frames, laptop housings, TV bezels, connectors	Ultra-thin profiles, tight tolerances, aesthetics
Automotive	Interior trims, lighting housings, connectors, covers	Lightweighting, durability, fuel efficiency
Food Packaging	Cups, containers, lids, trays, dairy tubs	High speed, material efficiency, food safety
Consumer Goods	Storage containers, daily-use plastics, wearable housings	Cost-effectiveness, consistent quality, aesthetics

Design Guidelines for Thin-Wall Plastic Parts & Mold Flow

Successful thin-wall molding begins with intelligent part design. The following guidelines help ensure manufacturability, dimensional accuracy, and structural integrity.

Uniform Wall Thickness

Uniform wall thickness is the single most important design principle in thin-wall molding. Sudden transitions from thin to thick sections create uneven cooling, internal stresses, and warpage. When thickness changes are unavoidable, use gradual transitions with radii rather than sharp steps. Ribs should measure approximately 50–60 percent of the nominal wall thickness at their base to avoid excessive material accumulation and sink marks.

Corner Radii and Fillets

Sharp internal corners act as stress concentrators and impede material flow. Generous fillets and radii—generally at least 50 percent of the nominal wall thickness—smooth the flow path, reduce pressure drop, and improve part strength. A minimum radius of 25 percent of the adjoining wall thickness should be maintained at the base of ribs and other features.

Draft Angles

Draft angles are essential for easy part ejection from the mold. A general rule is 1° per side for smooth surfaces and 1.5–2° per side for textured surfaces. Adequate draft prevents parts from sticking to the cavity or core and reduces the risk of surface marring during ejection.

Gate Placement and Runner Design

Gate location and design directly influence flow behavior and part quality. For thin-wall parts, multiple gates or hot runner systems are often employed to reduce flow resistance and ensure uniform filling. In multi-cavity tools, runner systems should taper or step down at every branch to maintain shear and prevent premature cooling. Gate placement should minimize the flow length and avoid welding multiple flow fronts in critical structural areas.

Critical Process Parameters in Thin-Wall Injection Molding

The table below summarizes the typical operating parameters and specifications for thin-wall injection molding across different application tiers.

Parameter	Standard Thin-Wall	High-Speed Packaging	Ultra-Thin/Micro Molding
Wall Thickness	0.5–1.5 mm	0.25–0.5 mm	<0.3 mm
Flow L/t Ratio	150:1–200:1	200:1–400:1	>400:1
Injection Speed	200–400 mm/s	400–1,200 mm/s	600–1,000+ mm/s
Injection Pressure	1,500–2,000 bar	2,000–2,500+ bar	>2,500 bar
Cycle Time	5–15 seconds	1.8–5 seconds	3–10 seconds
Material MFR Required	>20 g/10 min	>40 g/10 min	>50 g/10 min
Typical Industries	Medical, automotive, electronics	Food packaging, consumer goods	Micro-electronics, medical micro-devices
Tolerances (mold/part)	±0.02–0.05 mm	±0.02–0.03 mm	±0.005–0.01 mm

Why Choose LAVA3DP as Your Thin-Wall Injection Molding Partner ?

At LAVA3DP, we specialize in custom thin wall plastic parts for clients across medical, electronics, automotive, packaging, and consumer goods industries. As an ISO certified injection molding company and global injection molding supplier, our capabilities include:

• High-speed injection molding machines with accumulator-assisted injection capable of speeds exceeding 400 mm/s and pressures up to 2,500 bar
• Precision mold manufacturing with CNC machining tolerances down to ±0.005 mm, backed by high precision mold engineering
• Advanced cooling system design, including conformal cooling channels for uniform temperature control
• Comprehensive material selection support, from commodity resins to medical-grade and high-temperature engineering plastics
• ISO 9001:2015 quality management with full dimensional inspection and statistical process control ensuring quality assurance injection molding
• End-to-end project management, from design for manufacturability (DFM) analysis through tooling, sampling, and production with engineering support for mold design

Whether you need prototype quantities for design validation or high-volume production runs of millions of parts, LAVA3DP delivers quality, consistency, and value as a trusted thin wall injection molding supplier. We work closely with each client to optimize part design, select the ideal material, and fine-tune process parameters for maximum efficiency and part performance.

Ready to bring your thin-wall part design to life? Contact us to discuss your project requirements and Request a Free Quote for high volume thin wall molding services.
